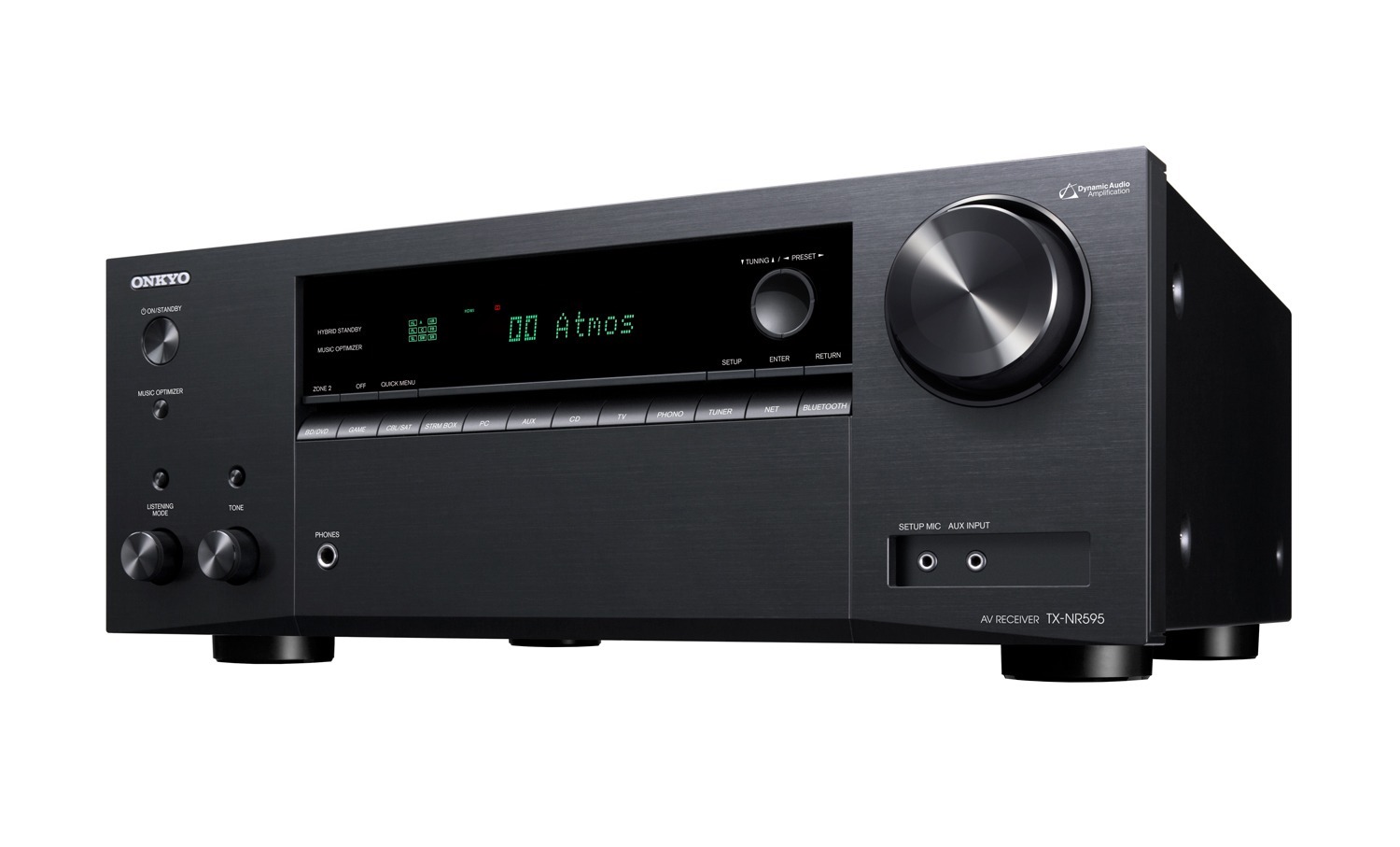

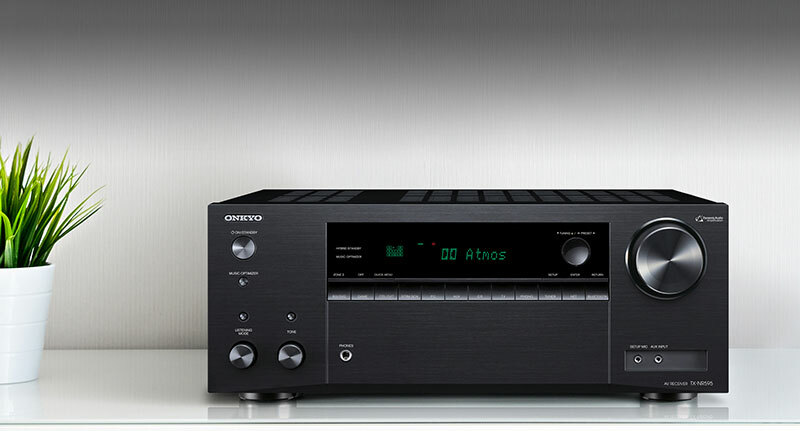

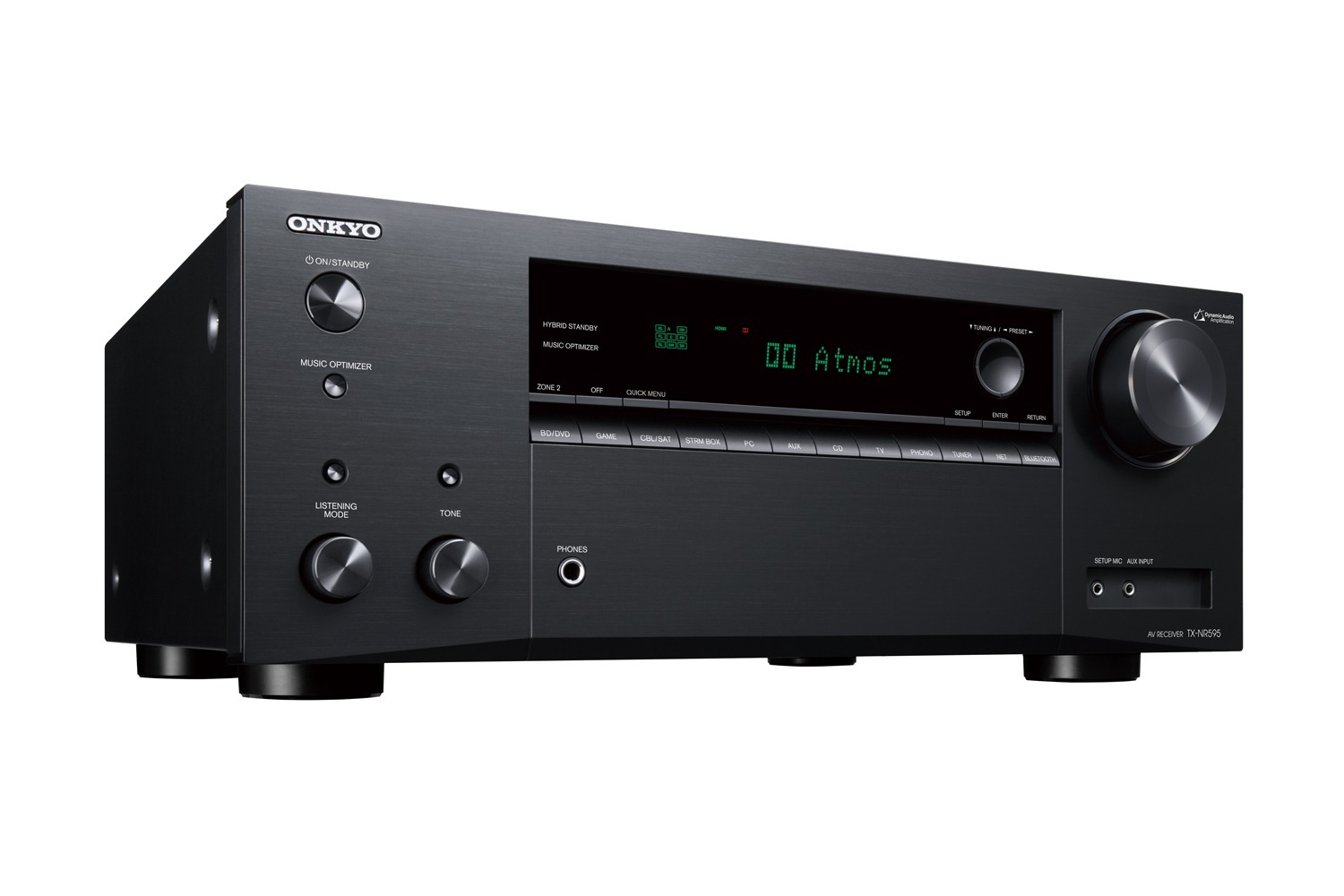

TX-NR595 (Refurbished)
With six HDMI® inputs and dual outputs integrating players, TV, and projector, you’re set for a 4K HDR video experience inside Dolby Atmos® orDTS:X® sound delivered through any speaker layout. Dolby Atmos Height Virtualizer* and DTS Virtual:XTM* create an immersive 3D soundfield withoutheight or surround speakers connected, while Dolby Surround and DTS® Neural:X add overhead dimensionality to regular soundtracks when playedthrough layouts with height speakers. SMART AV ReceiverTM bundles Amazon Music, Spotify®, Pandora®, TIDAL, Deezer, and TuneIn together withWorks with Sonos, AirPlay 2*, DTS Play-Fi®, and FlareConnectTM solutions so you can enjoy wireless audio all around your home. Powered Zone 2speaker outputs can play the same or different sources (including HDMI) in one or both zones, and you can keep your surround layout connectedand switch between MAIN and Zone 2 in seconds. Joined by stress-melting features such as an all-new simple remote with DSP-based Vocal Enhancerfunction, and backed by DAA’s high-current muscle, this A/V powerhouse has everything it takes to make life great. *Enabled with a future firmware update.
Features
Amplifier
# Channels | 7.2 |
Power Watts/Ch (8 Ohms 20-20kHz, 2 Channels Driven, FTC) | 80 Watts, 0.08% THD |
Power Watts/Ch (6 Ohms 1kHz, 1 Channel Driven) | 170 Watts, 10% THD |
Dynamic Audio Amplification | ✓ (for Clear and Realistic Sound) |
H.C.P.S. (High Current Power Supply) | - |
Non-Phase Shift Amplifier | ✓ |
THX Certified | - |
Continuous 6 Ohms Rated | ✓ |
Certified 4 Ohms Performance | ✓ |
Discrete Output Stage Circuitry | ✓ |
Amplifier Design | Linear Class A/B |
Independent Block Construction (Amp/Preprocessor) | - |
Independent Power Supply | - |
Bi-amp Capability For Front | ✓ |
Processing
Dolby Atmos | ✓ (5.2.2) |
Dolby Atmos Height Virtualizer | ✓ |
32-Bit Digital Signal Processing Engine | ✓ |
Dolby Decoder | Dolby Atmos, Dolby True HD |
DTS:X | ✓ |
DTS Virtual:X | ✓ (Enabled with a future firmware update) |
DTS Decoder | DTS:X, DTS-HD Master Audio |
ONKYO GAME Surround Modes | ✓(Rock, Sports, Action, RPG) |
VLSC for Noiseless Audio Processing | ✓ |
THX Processing Mode | - |
CinemaFILTER | ✓ |
AccuEQ Room Calibration | ✓ (w/ AccuReflex) |
Phase-Matching Bass Boost | - |
Direct/Pure Mode | ✓/- |
Pure Direct Analog Path Mode | - |
Advanced Music Optimizer | ✓ |
384K/32 Bit DACs | ✓ |
192K/24 Bit DACs | - |
Connectivity
Analog Audio IN | 4 |
Phono Input | ✓ |
Digital Audio IN (OPT/COAX) | 1 / 1 |
Composite Video I/O | - |
Component Video I/O | - |
Front Panel HDMI | - |
Front-Panel A/V | 1 (Analog) |
USB Input | ✓(Rear) |
HDMI I/O | 6 / 2(Main, Sub/Zone 2) |
HDMI 4K/60 Hz- Capable HDMI Terminals | ✓ |
HDCP 2.3 Copy-Protection Compatibility | ✓ |
HDMI Support for High Dynamic Range | ✓(HDR10 and Dolby Vision) |
HDMI Support for 3D, Audio Return Channel and CEC | ✓ |
BT.2020 Support | ✓ |
HDMI Support for Deep Color, x.v.Color, LipSync | ✓ |
HDMI Support for DVD-Audio, SACD, Multichannel PCM | ✓ |
Analog To HDMI Upconversion | - |
1080p to 4K Upscaling | ✓ |
4K Passthrough | ✓ |
Analog Pre-Outs | Subwoofer (x2) |
Speaker A/+B | - |
Powered Zone 2 | ✓ |
Powered Zone 3 | - |
Zone 2 Line Out | ✓ |
Zone 2 Video Out | - |
Zone 2 Digital to Analog Audio Conversion | ✓(Net/SPDIF/Bluetooth, HDMI Inputs 1-3) |
Zone 3 Line Out | - |
Whole House Mode | - |
FlareConnect Multi-room Audio | ✓ |
Airplay & Airplay 2 | ✓ |
Chromecast built-in | - |
Works with Google Assistant | - |
Supports Onkyo Remote App | ✓ |
Internet Radio Capable | ✓ |
Spotify Connect Support | ✓ |
Tidal | ✓ |
Amazon Music | ✓ |
Streaming Audio From PC / Network | ✓ |
Hi-Res Streaming Audio Formats | ✓ (DSD 5.6 MHz/2.8 MHz; FLAC, WAV, AIFF, and ALAC to 192 kHz/24-bit) |
Streaming Audio From USB memory | ✓ |
Wireless Network | IEEE 802.11 a/b/g/n 5 Ghz / 2.4 Ghz |
Bluetooth | ✓ (Version 4.1 + LE, Profile: A2DP v1.2, AVRCP v1.3) |
Integration Access
RS-232 | - |
IR Input | - |
IR Output | - |
Ethernet | ✓ |
ONKYO-RI System Control | - |
RIHD (Remote Interactive Over HDMI) | - |
12V Trigger | - |
Miscellaneous
Pre-Programmed Remote | - |
Hybrid Standby Function | ✓ |
Smart Grid-Ready | ✓ |
Auto Speaker Calibration W/Mic. | AccuEQ w/ AccuReflex |
OSD Out | ✓ |
Solid Aluminum Front | - |
Transparent High-Grade Speaker Terminals | - |
Detachable AC Cord | - |
Warranty | 1 YEARS |
Docs
Spec Sheet
For more technical detail, download the Spec Sheet here:
TX-NR595 (Refurbished) Product Sheet
.
Product Manuals
Download the Product Manuals for TX-NR595 (Refurbished) here:
TX-NR595 (Refurbished) Owner's Manual - English
,
TX-NR595 (Refurbished) Owner's Manual - Spanish
,
TX-NR595 (Refurbished) Owner's Manual - French
.
Firmware Updates
- Latest firmware update instructions: TX-NR595 (Refurbished) Firmware Update Instructions .
- Latest firmware update: TX-NR595 (Refurbished) Firmware Update .
