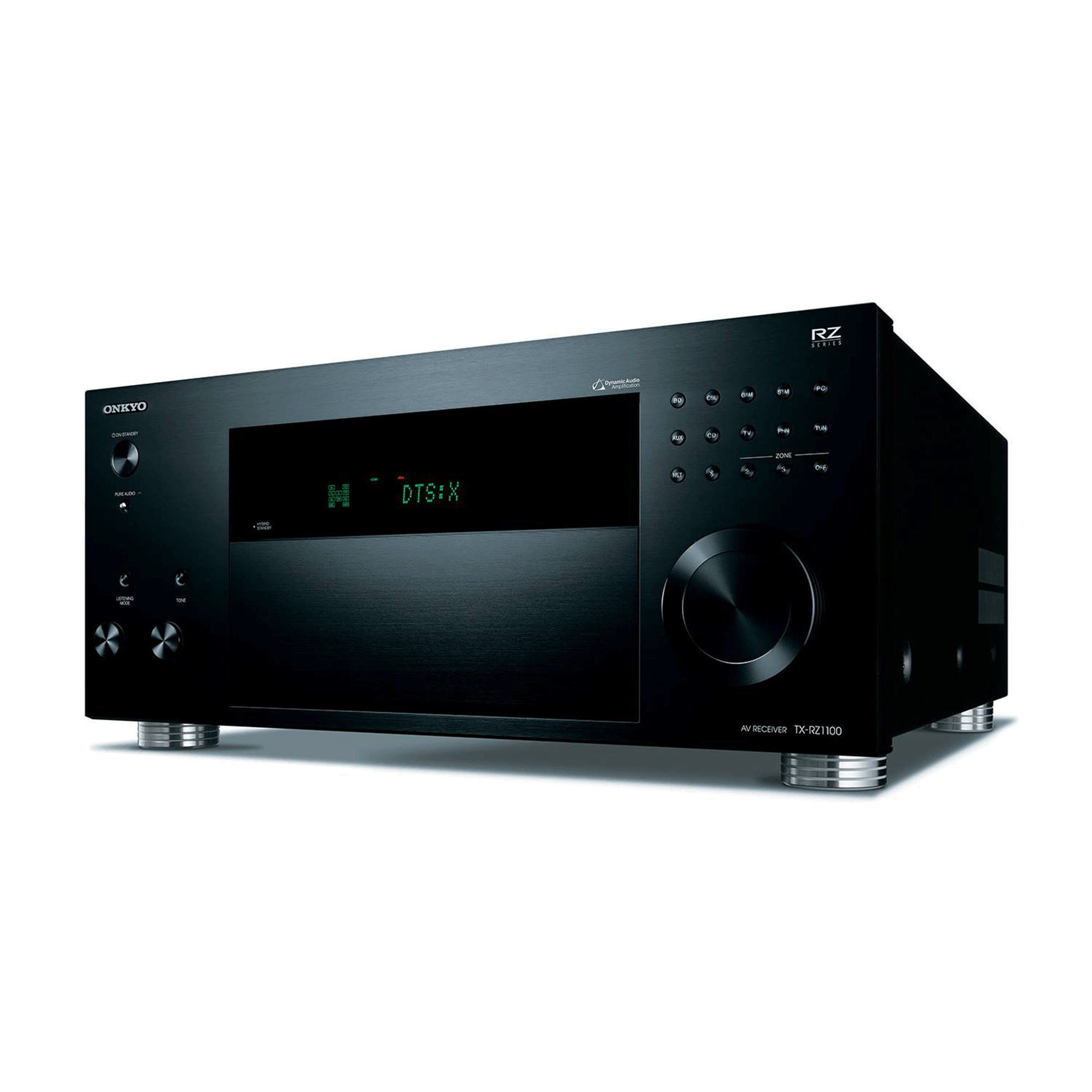

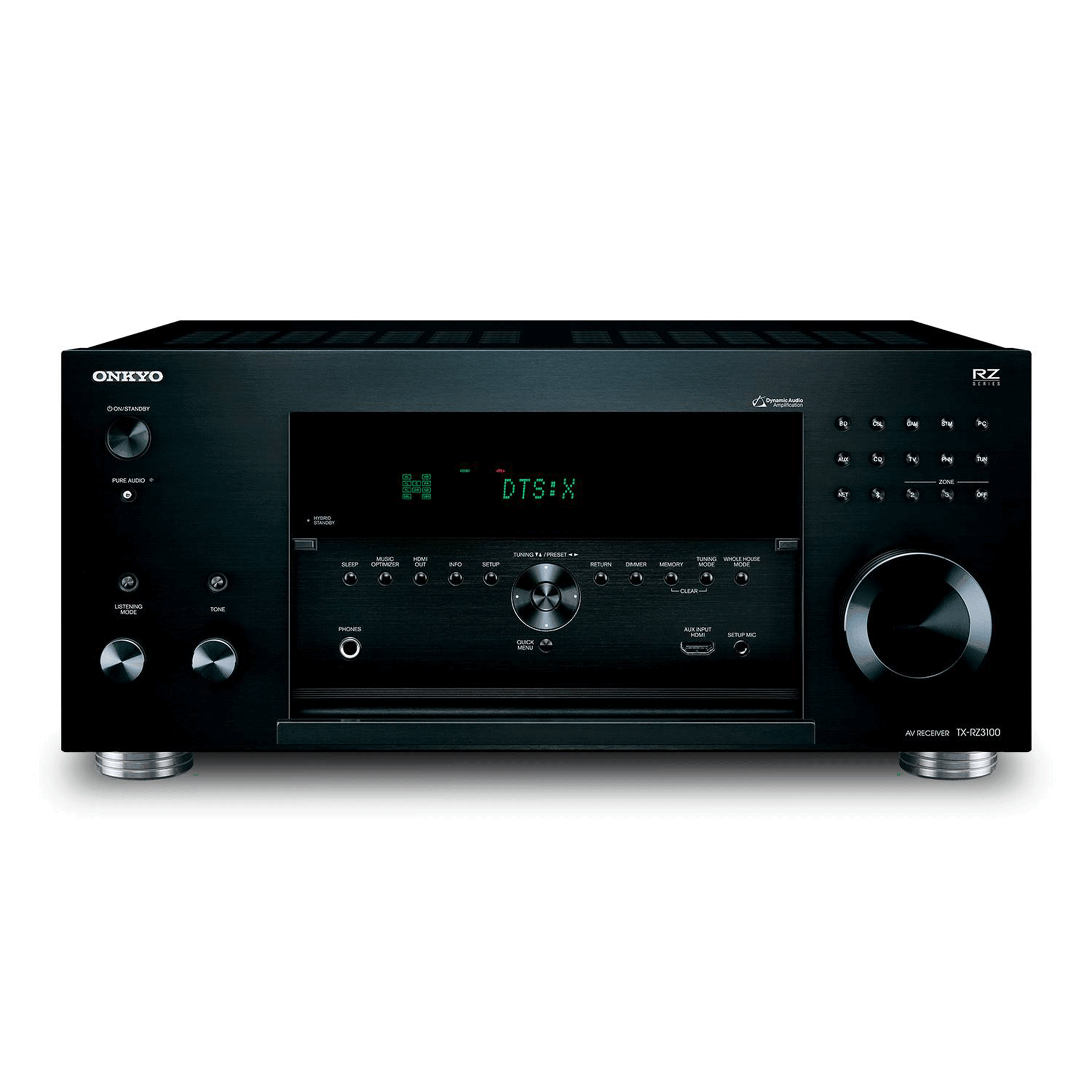

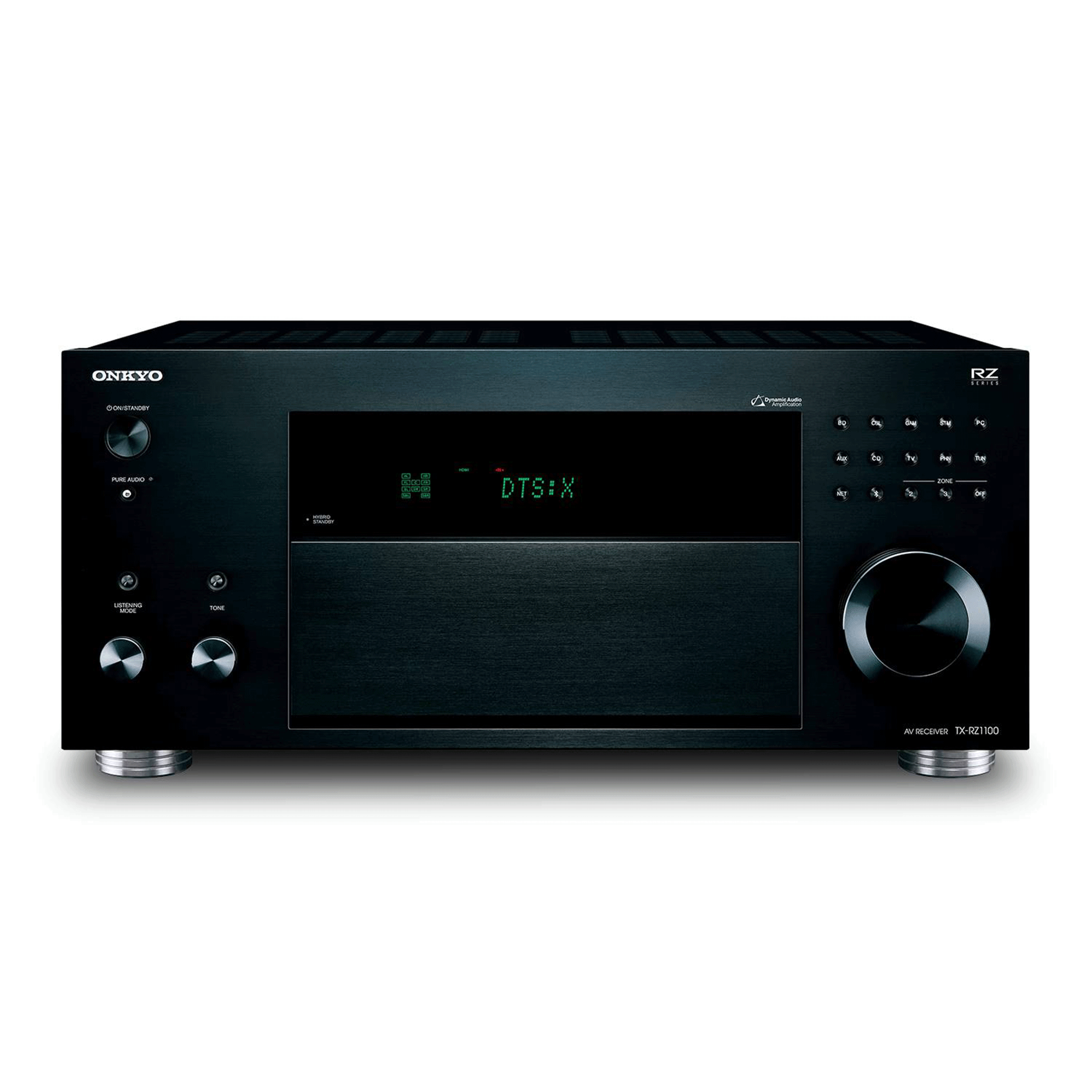

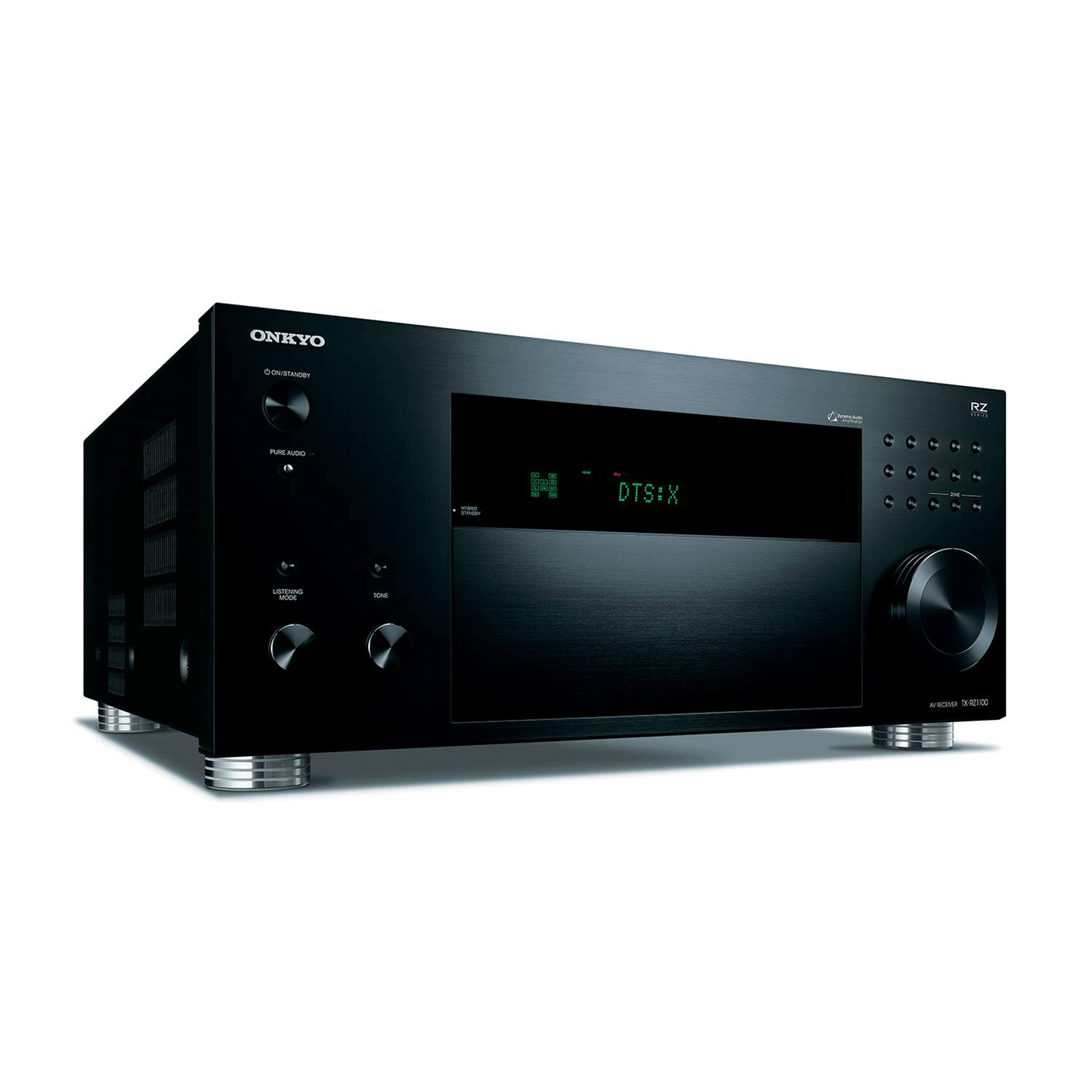

9.2-Channel Network AV Receiver
The THX®-certified TX-RZ1100 AV receiver delivers mammoth power to impress even the most discerning audiophiles and home theater enthusiasts.
Packed with 140 watts per channel for ultra-clean sound, this receiver is equipped with a best-in-class, high-powered amplifier. With a 5.2.4-channel audio setup, the TX-RZ1100 is perfect for your immersive Dolby Atmos®-ready home theater system.
- THX® Select2™ Plus Certification
- Google Cast, AirPlay®, Wi-Fi®, and Bluetooth® App Streaming
- Sophisticated digital-switching technology to choose whatever you’re in the mood to hear or watch
- Dazzling 4K video distribution
- DTS Neural: X™ up mixes legacy sound for height-enabled systems
- AccuEQ Room Calibration with AccuReflex Technology
Ready for 4K Entertainment
Enjoy support for HDR (High Dynamic Range) video including HDR10, HLG, Dolby Vision®, and BT.2020. The 4:4:4 color space is also supported. Six HDMI inputs, ARC-ready MAIN OUT, and SUB OUT pass 4K/60p and HDR video from player to compatible TV and projector and all terminals are HDCP 2.2 compliant.
Works with Sonos + built-in Chromecast
This Onkyo receiver can join your existing Sonos Home Sound System, or be the start of a new ecosystem, just by pairing it with Sonos Connect. Or you can choose to stream music from your smartphone, laptop, or PC to your Onkyo receiver with Chromecast enabled apps. However you listen, we've got you covered.
Dolby Atmos® and DTS:X® – Setting Sound Free
Dolby Atmos® and DTS:X® formats allow engineers to map sound anywhere in 3D space, effects moving from speaker to speaker all around the room and wrapping your audience in the latest films and games. You can also enjoy your 3D speaker layout with classic titles. Dolby Surround® and DTS® Neural:X find overhead cues in legacy soundtracks and upmix for awesome spatial realism.
THX Certified
In 1993, Onkyo became the first consumer electronics brand to be THX-certified. With literally thousands of tests, before earning the THX-certification logo: no matter what input is used, no matter what combination of the many built-in features for the AVR, preamplifier, or amplifier, there can be absolutely nothing added, nothing taken away from the source material. The TX-NR7100 offers four distinct THX listening modes: cinema, gaming, music, and surround EX.
Looking for more? Check out these similar products.
TX-NR7100
9.2-Channel THX Certified AV Receiver
Features
| # Channels |
9.2 |
| Power Watts/Ch (8 Ohms 20-20kHz, 2 Channels Driven, FTC) |
140, 0.08% THD |
| Power Watts/Ch (6 Ohms 1kHz, 1 Channel Driven, FTC) |
200, 0.9% THD |
| Dynamic Audio Amplification |
✓ (for Clear and Realistic Sound) |
| H.C.P.S. (High Current Power Supply) |
✓ |
| Non-Phase Shift Amplifier |
✓ |
| THX Certified |
✓ |
| Continuous 6 Ohms Rated |
✓ |
| Certified 4 Ohms Performance |
✓ |
| Discrete Output Stage Circuitry |
✓ |
| Independent Block Construction (Analog/Digital) |
✓ |
| Bi-amp Capability For Front |
✓ |
| Dolby Atmos |
✓ |
| 32-Bit Digital Signal Processing Engine |
✓ |
| Dolby Decoder |
Atmos, True HD, DD Plus |
| DTS:X |
✓ |
| DTS Decoder |
DTS:X, DTS-HD Master Audio |
| Surround Modes |
✓(Rock, Sports, Action, RPG) |
| VLSC for Noiseless Audio Processing |
✓ (All Channels) |
| THX Processing Mode |
✓ |
| CinemaFILTER |
- |
| AccuEQ Room Calibration |
✓ (w/ AccuReflex) |
| Direct/Pure Mode |
✓/✓ |
| Advanced Music Optimizer |
✓ |
| 384K/32 Bit DACs |
✓ |
| 192K/24 Bit DACs |
- |
| Analog Audio IN |
7 |
| Phono Input |
✓ |
| Digital Audio IN (OPT/COAX) |
3 / 2 |
| Composite Video I/O |
2 / 0 |
| Component Video I/O |
2 / 1 |
| Front Panel HDMI |
✓ |
| Front-Panel A/V |
- |
| USB Input |
✓ (Rear) |
| HDMI I/O |
8 / 2 (Main/Zone 2/Sub) |
| HDMI 4K/60 Hz- Capable HDMI Terminals |
✓ |
| HDCP 2.2 Copy-Protection Compatibility |
✓ |
| HDMI Support for 3D, Audio Return Channel and CEC |
✓ |
| HDR10 and BT.2020 Support |
✓ |
| HDMI Support for Deep Color, x.v.Color, LipSync |
✓ |
| HDMI Support for DVD-Audio, SACD, Multichannel PCM |
✓ |
| HDMI Support for High Dynamic Range |
✓ |
| Analog To HDMI Upconversion |
✓ |
| 1080p to 4K Upscaling |
✓ |
| 4K Passthrough |
✓ |
| Analog Pre-Outs |
11.2 |
| Speaker A/+B |
- |
| Powered Zone 2 |
✓ |
| Powered Zone 3 |
✓ |
| Zone 2 Line Out |
✓ |
| Zone 2 Video Out |
✓ |
| Zone 2 Digital to Analog Audio Conversion |
✓(Net/SPDIF/HDMI) |
| Zone 3 Line Out |
✓ |
| Whole House Mode |
✓ |
| FlareConnect Multi-room Audio |
✓ |
| Airplay |
✓ |
| Chromecast built-in |
✓ |
| Supports Onkyo Controller App |
✓ |
| Internet Radio Capable |
✓ |
| Spotify Connect Support |
✓ |
| Tidal |
✓ |
| Streaming Audio From PC / Network |
✓ |
| Hi-Res Streaming Audio Formats |
✓ |
| Streaming Audio From USB memory |
✓ |
| Wireless Network |
IEEE 802.11 a/b/g/n 5 Ghz / 2.4 Ghz |
| Bluetooth |
✓(Built-in) |
| RS-232 |
✓ |
| IR Input |
✓ |
| Ethernet |
✓ |
| RIHD (Remote Interactive Over HDMI) |
✓ |
| 12V Trigger |
✓ |
| Hybrid Standby Function |
✓ |
| Auto Speaker Calibration W/Mic. |
AccuEQ w/AccuReflex |
| OSD Out |
✓ |
| Solid Aluminum Front |
✓ |
| Transparent High-Grade Speaker Terminals |
- |
| Detachable AC Cord |
✓ |
| Warranty |
3 YEARS |
Specs
| All Channels |
140 W/Ch (8 Ohms, 1kHz, 0.08% THD, 2 Channels Driven, FTC) 200 W/Ch (6 Ohms, 1 kHz, 0.9% THD, 1 Channel Driven, FTC) |
| Dynamic Power |
320 W (3 Ohms, Front) 270 W (4 Ohms, Front) 160 W (8 Ohms, Front) |
| THD+N (Total Harmonic Distortion + Noise) |
0.04% (1kHz, 100 W) |
| Input Sensitivity and Impedance |
200 mV/82 k-ohms (Line) 3.5 mV/47 k-ohms (Phono MM) |
| Rated RCA Output Level and Impedance |
1.0 V/330 Ohms (Pre Out) 1.0 V/330 Ohms (Subwoofer Pre Out) 200 mV/1.2 k-ohms (Zone Out) 2.0 V/1.2 k-ohms (Zone Pre Out) |
| Phono Overload |
70 mV (MM, 1 kHz, 0.5%) |
| Tone Control |
±10 dB, 100 Hz (Bass) ±10 dB, 10 kHz (Treble) |
| Signal-to-Noise Ratio |
108 dB (Line, IHF-A) 90 dB (Phono, IHF-A) |
| Speaker Impedance |
4 ohms–16 ohms |
| Video |
1.0 Vp–p/75 Ohms (Component Y) 0.7 Vp–p/75 Ohms (Component PB/CB, PR/CR) 1.0 Vp–p/75 Ohms (Composite) |
| FM |
87.5 MHz–107.9 MHz |
| AM |
530 kHz–1,710 kHz |
| FM/AM Preset Memory |
40 stations |
| Power Supply |
AC 120 V~, 50/60 Hz |
| Power Consumption |
320 W |
| Standby Power Consumption |
0.15 W |
| Dimensions (W x H x D) |
17 1/8" x 7 15/16" x 17 13/16" (435 x 201 x 453 mm) |
| Weight |
43.0 lbs (19.5 kg) |
| Dimensions (W x H x D) |
22 1/4" x 12 13/16" x 21 9/16" (565 x 325 x 547 mm) |
| Weight |
48.5 lbs (22.0 kg) |
