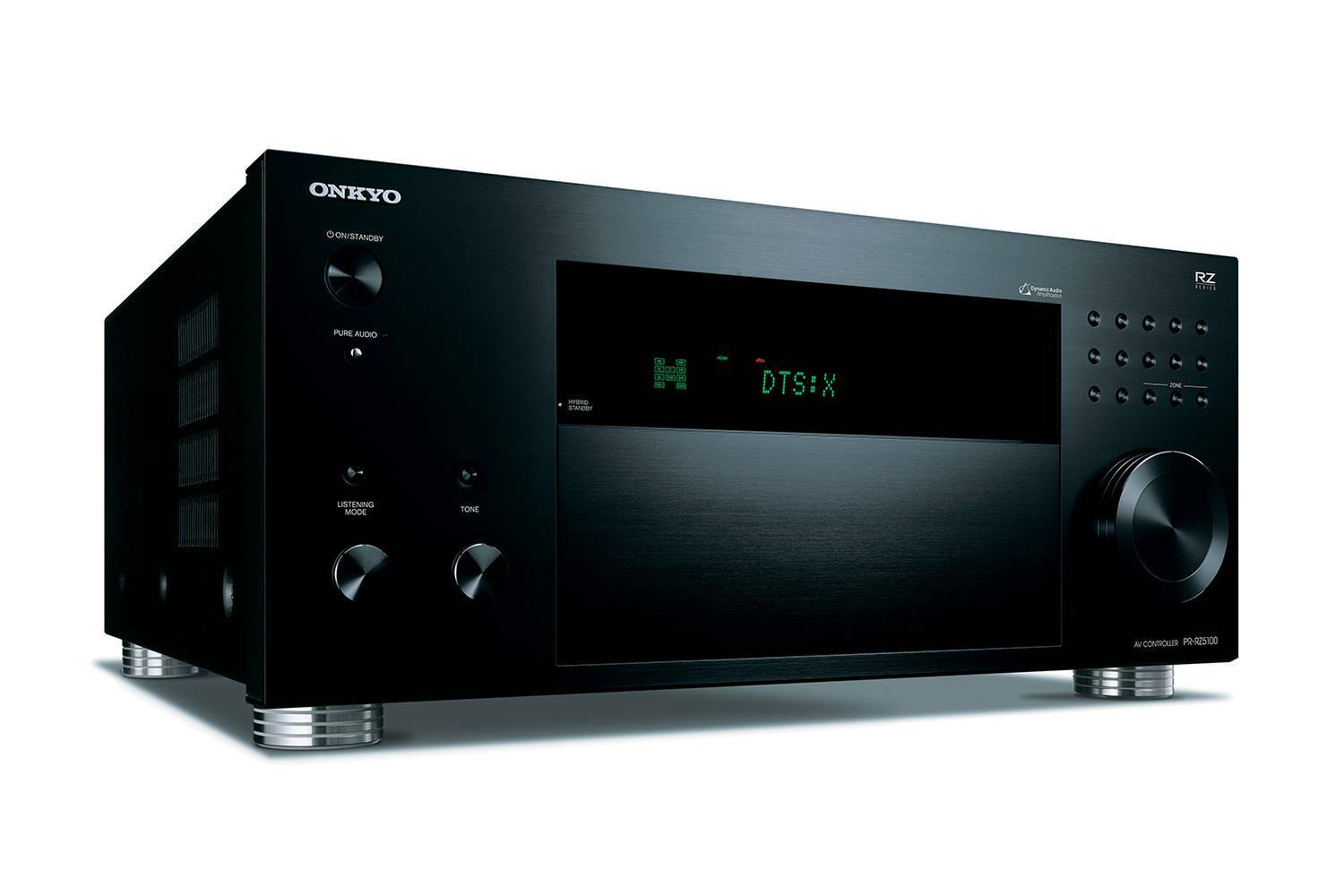

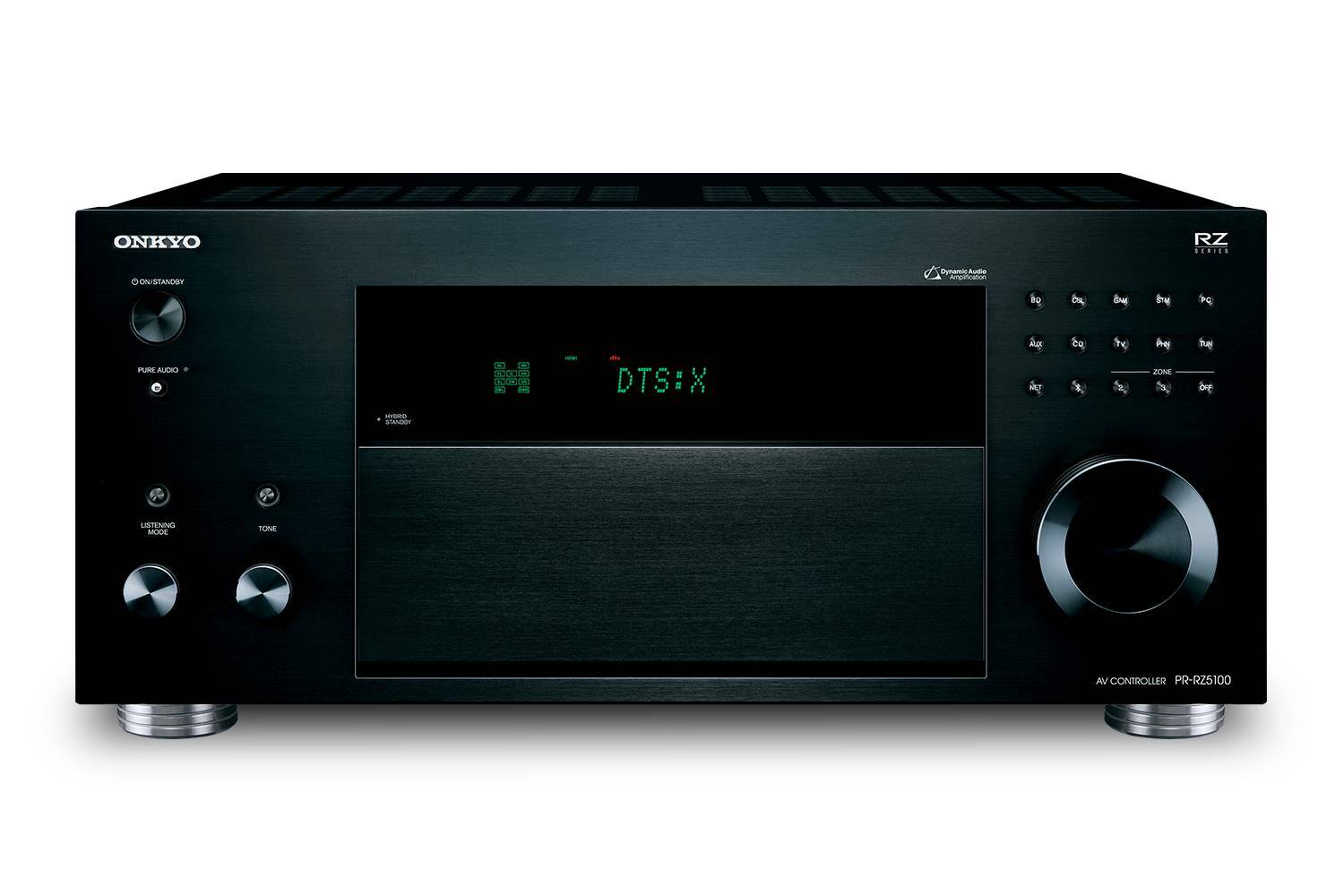

PR-RZ5100
Update your lovingly assembled home theater and join the object-based sound revolution with a flexible and sophisticated controller capable of delivering a full-scale multidimensional surround-sound experience without caveat or compromise. DTS:X™ and Dolby Atmos® formats are decoded and sent to your power-amp and floorstanding/in-ceiling speaker layout with utmost fidelity through RCA or XLR pre-outs, unlocking a truly immersive theater experience.
Features
Preamplifier
| # Channels | 11.2 |
| THX Certified | Ultra2 Plus |
| Signal-to-Noise Ratio | 110 dB (LINE, IHF-A) 80 dB (Phono MM, IHF-A |
| Discrete Output Stage Circuitry | ✓ |
| Independent Block Construction (Analog/Digital) | ✓ |
| Bi-amp Capability For Front | ✓ |
Processing
| Dolby Atmos | ✓ |
| 32-Bit Digital Signal Processing Engine | ✓ |
| Dolby Decoder | Atmos, True HD, DD Plus, PLIIz |
| DTS:X | ✓ |
| DTS Decoder | DTS:X, DTS-HD Master Audio |
| ONKYO GAME Surround Modes | ✓ (Rock, Sports, Action, RPG) |
| VLSC for Noiseless Audio Processing | ✓ (All Channels) |
| THX Processing Mode | ✓ |
| AccuEQ Room Calibration | ✓ (w/ AccuReflex) |
| Direct/Pure Mode | X / X |
| Advanced Music Optimizer | ✓ |
| 384K/32 Bit DACs | ✓ |
| 192K/24 Bit DACs | - |
Connectivity
| Audio I/O | 7 / 0 |
| Phono Input | ✓ |
| Digital Audio IN (OPT/COAX) | 3 / 2 |
| Composite I/O | 2 / 0 |
| Component Video I/O | 2 / 1 |
| Front Panel HDMI | ✓ |
| USB Input | ✓ (Rear) |
| HDMI I/O | 8 / 2 |
| HDMI 4K/60 Hz- Capable HDMI Terminals | ✓ |
| HDCP 2.2 Copy-Protection Compatibility | ✓ |
| HDMI Support for High Dynamic Range | ✓ (Dolby Vision via firmware update) |
| HDMI Support for 3D, Audio Return Channel and CEC | ✓ |
| HDR10 and BT.2020 Support | ✓ |
| HDMI Support for Deep Color, x.v.Color, LipSync | ✓ |
| HDMI Support for DVD-Audio, SACD, Multichannel PCM | ✓ |
| Composite to Component Video Upconversion | - |
| Analog To HDMI Upconversion | ✓ |
| 1080p to 4K Upscaling | ✓ |
| 4K Passthrough | ✓ |
| Analog Pre-Outs | 11.2 Ch |
| XLR Balanced Audio Pre-outs | 11.2 Ch |
| Zone 2 Line Out | ✓ |
| Zone 2 Video Out | ✓ |
| Zone 2 Digital to Analog Audio Conversion | ✓ (Net/SPDIF/HDMI) |
| Zone 3 Line Out | ✓ |
| Whole House Mode | ✓ |
| FlareConnect Multi-room Audio | ✓ |
| Airplay | ✓ |
| Chromecast built-in | ✓ |
| Supports Onkyo Controller App | ✓ |
| Internet Radio Capable | ✓ |
| Spotify Connect Support | ✓ |
| Tidal | ✓ |
| Streaming Audio From PC / Network | ✓ |
| Hi-Res Streaming Audio Formats | ✓ |
| Streaming Audio From USB memory | ✓ |
| Wireless Network | IEEE 802.11 a/b/g/n 5 Ghz / 2.4 Ghz |
| Bluetooth | ✓ (Built-in) |
| PC Input (15 pin D-sub) | ✓ |
Integration Access
| RS-232 | ✓ |
| IR Input | ✓ |
| Ethernet | ✓ |
| ONKYO-RI System Control | ✓ |
| RIHD (Remote Interactive Over HDMI) | ✓ |
| 12V Trigger | ✓ |
Miscellaneous
| Hybrid Standby Function | ✓ (to Reduce Power Consumption) |
| Smart Grid-Ready | ✓ |
| Auto Speaker Calibration W/Mic. | AccuEQ w/AccuReflex |
| OSD Out | ✓ |
| Solid Aluminum Front | ✓ |
| Detachable AC Cord | ✓ |
| Warranty | 3 YEARS |
Specs
Controller Section
| Input Sensitivity and Impedance | 200 mV/82 k-ohms (Line) 3.5 mV/47 k-ohms (Phono MM) |
| Rated RCA Output Level and Impedance | 200 mV/1.2 k-ohms (Zone Out) 2 V/1.2 k-ohms (Zone Pre Out) 1.0 V/330 Ohms (Pre Out/Subwoofer Pre Out) |
| Rated XLR Output Level and Impedance | 2.0 V/220 Ohms (Pre Out) |
| Phono Overload | 70 mV (MM, 1 kHz, 0.5%) |
| Frequency Response | 5 Hz-100 kHz/+1 dB, -3 dB (Direct Mode) |
| Tone Control | ±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble) |
| Signal-to-Noise Ratio | 110 dB (Line, IHF-A) 80 dB (Phono MM, IHF-A) |
Video Section
| Video | 1.0 Vp-p/75 ohms (Component) 0.7 Vp-p/75 ohms (Component PB/CB, PR/CR) 1.0 Vp-p/75 ohms (Composite) |
Tuner Section
| FM | 87.5 MHz–107.9 MHz |
| AM | 530 kHz–1,710 kHz |
| FM/AM Preset Memory | 40 stations |
General
| Power Supply | AC 120 V~, 60 Hz |
| Power Consumption | 65 A |
| Standby Power Consumption | 0.15 W |
| Dimensions (W x H x D) | 17 1/8" x 7 13/16" x 18 3/8" (435 x 199 x 466.5 mm) |
| Weight | 30.9 lbs (14.0 kg) |
UPC Code
| (B) | 751398011757 |
Docs
Product Manuals
Download the Product Manuals for PR-RZ5100 here:
PR-RZ5100 Owner's Manual- English
,
PR-RZ5100 Owner's Manual- Spanish/French
.
Firmware Updates
- Latest firmware update instructions: TX-RZ3100 Firmware Update Instructions .
- Latest firmware update: TX-RZ3100 Firmware Update .
