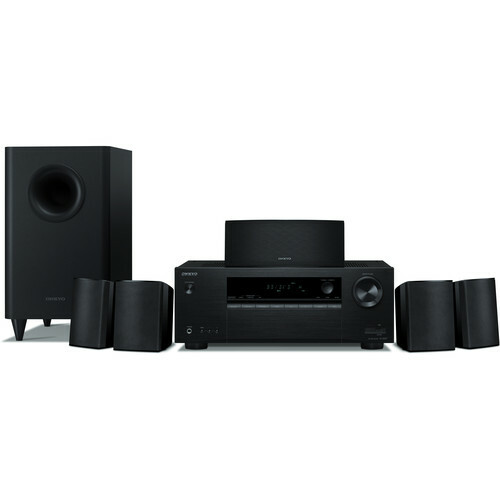

5.1 Channel Home Theater System
Delivering a complete home theater experience, the Onkyo HT-S3900 5.1 Channel system includes four HDMI inputs, two composite video inputs, one optical, one digital coaxial, and three stereo RCA audio inputs. With Bluetooth wireless connectivity, you can stream your favorites with pristine clarity and a robust soundstage, just the way the sound engineers wanted.
- Bundle includes a high-quality six-piece surround-sound speaker system, including a 6.44” down-firing passive subwoofer and A/V receiver that's perfect for smaller living spaces
- Simple, easy-to-follow set-up with color-coded speaker cables included
- Bluetooth wireless technology offers near-lossless playback
- HDMI-ARC for the reproduction of displayed-based audio
- Decodes TrueHD and DTS-HD Master Audio
- Discrete amplification for dynamic sound reproduction
Specs
| Channels |
5.1 |
| Power Output per Channel |
60 W per channel @ 8 Ohms, 20 Hz to 20 kHz, 0.7% THD, 2-channels driven, FTC 120 W per channel @ 6 Ohms, 1 kHz, 10% THD, 1-channel driven |
| THD & Noise |
0.06% (20 Hz to 20 kHz, 8 Ohms, 1-channel driven, 50 W) |
| Input Sensitivity and Impedance |
250 mV / 47 kOhms (line) |
| Frequency Response |
10 Hz to 100 kHz / 0 dB, -3 dB (Direct Mode) |
| Tone Control |
±10 dB, 100 Hz (bass) ±10 dB, 10 kHz (treble) |
| Signal-to-Noise Ratio |
106 dB (line, IHF-A Network, 1 kOhm shorted) |
| Impedance |
6 to 16 Ohms |
| Input Sensitivity/Output Level and Impedance |
Composite: 1.0 Vp-p ±5%/75 Ohms |
| Tuning Frequency Range |
FM: 87.5 MHz to 108 MHz AM: 530 kHz to 1700 kHz |
| FM/AM Preset Memory |
30 stations |
| Bluetooth |
Yes, with aptX |
| Audio Return Channel (ARC) |
Yes |

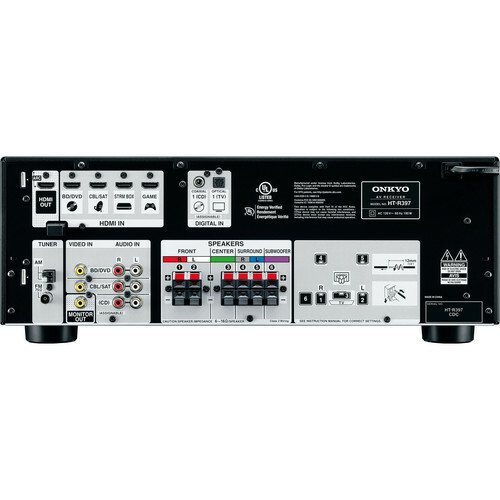

| Inputs |
4 x HDMI 2 x composite video 1 x optical TOSLINK 1 x digital coaxial 3 x stereo RCA 1 x USB (front) |
| Outputs |
1 x HDMI 1 x composite video 1 x 1/4" (6.35 mm) headphone (front) |
| Other Connections |
1 x AM antenna in 1 x FM antenna in |
| Speaker Connectors |
6 x spring clip pairs |
| Channels |
5.1 |
| Speaker Type |
Front, Center, Surround: Full-range, acoustic suspension, passive Subwoofer: Bass reflex, passive |
| Drivers |
Front, Center, Surround: 1x 3" (7.7 cm) cone Subwoofer: 1x 6.44" (16 cm) cone |
| Frequency Response |
Front, Surround: 80 Hz to 20 kHz Center: 70 Hz to 20 kHz Subwoofer: 28 to 5 kHz |
| Output Sound Pressure Level |
Front, Surround, Subwoofer: 83 dB/W/m Center: 84 dB/W/m |
| Maximum Input Power |
Front, Center, Surround: 150 W Subwoofer: 100 W |
| Nominal Impedance |
6 Ohms |
| Power Consumption |
Active: 190 W Standby: 0.35 W |
| Power Requirements |
120 VAC, 60 Hz |
| Dimensions (W x H x D) |
Receiver: 17.1 x 6.7 x 12.9" (435 x 168 x 326.5 mm) Each Front/Surround Speaker: 4 x 5.5 x 3.75" (100 x 140 x 95 mm) Center Speaker: 9.4 x 3.75 x 3.75" (240 x 95 x 95 mm) Subwoofer: 9.1 x 16.5 x 14.1" (230 x 418 x 358 mm) |
| Weight |
Receiver: 17 lb (7.7 kg) Each Front/Surround Speaker: 1.3 lb (0.6 kg) Center Speaker: 1.5 lb (0.7 kg) Subwoofer: 11.6 lb (5.3 kg) |
