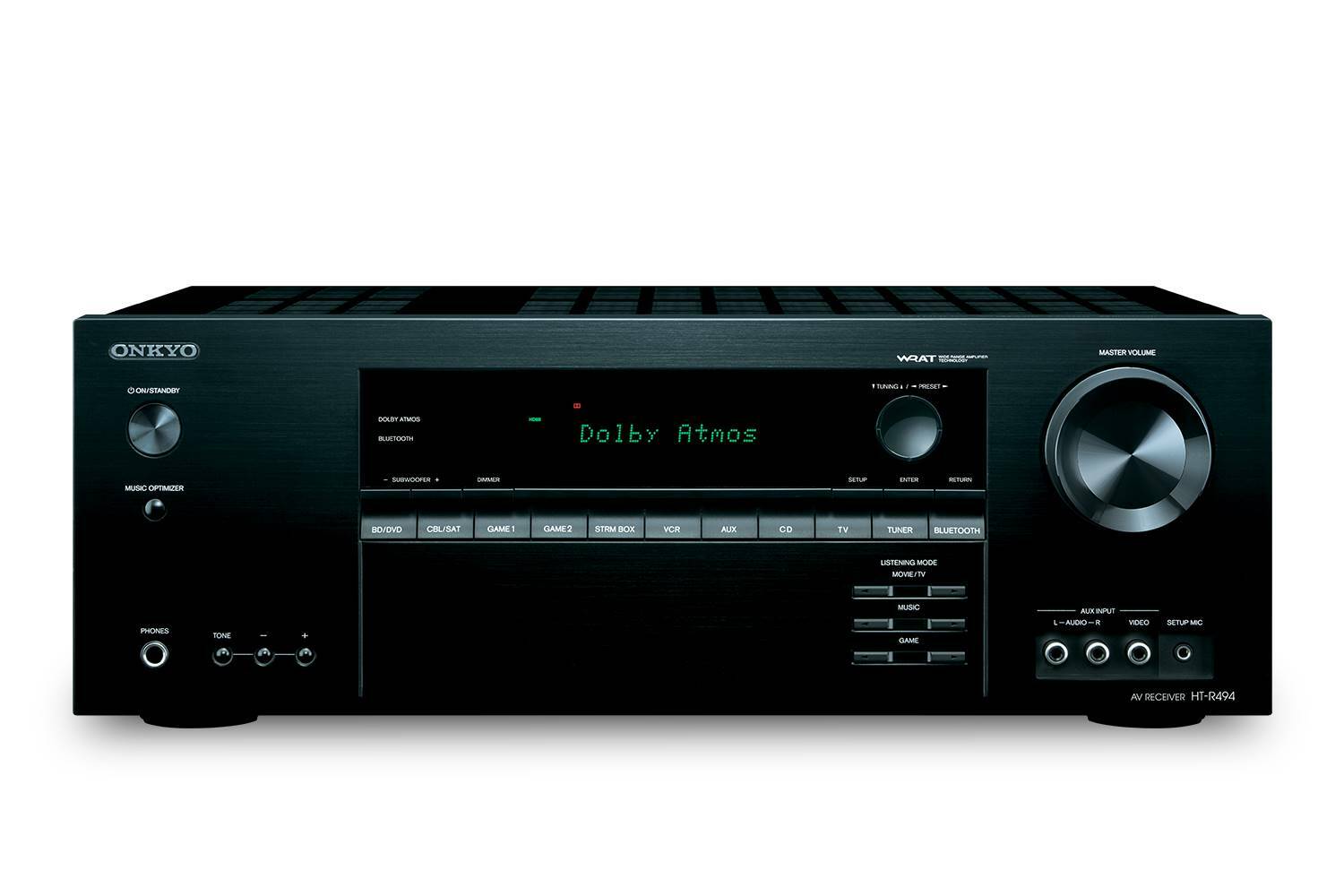

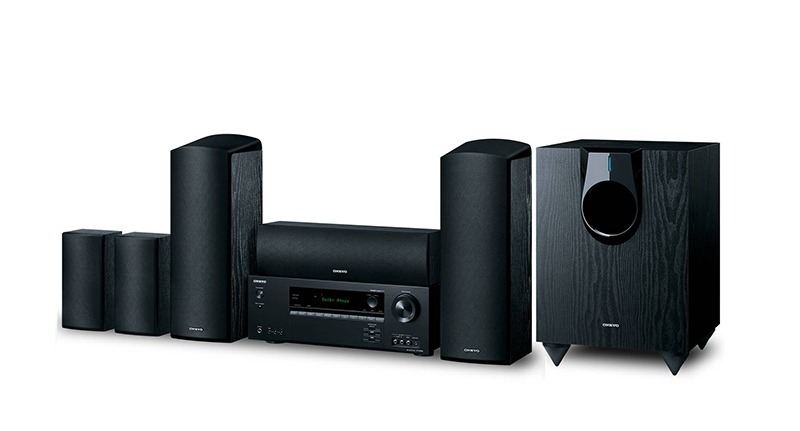

Everything you need to create a Dolby Atmos entertainment system is right here in one simple package, starting with a 115 W/Ch A/V receiver that connects all your media players and sends video to the TV via a single HDMI® cable. Once you’ve connected the included speaker system—which allows multidimensional Atmos soundtracks to flow above and around you—AccuEQ optimizes the sound to suit the unique shape of your room.
Features
| # Channels |
5.1.2 |
| Total System Power |
925W |
| Power (6 ohms, 1kHz, 0.9% THD, 1 Ch Driven, FTC)/Ch |
115 W/ch x 7 ch |
| Subwoofer Power |
120W |
| THX Certified |
- |
| All Discrete Amplifier Circuitry |
✓ |
| Speaker A/+B |
- |
| Dolby Atmos Ready |
✓ |
| 32-Bit Digital Signal Processing Engine |
✓ |
| Dolby Decoder |
Atmos, TrueHD, DD Plus |
| DTS Decoder |
DTS-HD Master Audio, HD-High Resolution Audio, NEO:6 |
| ONKYO GAME Surround Modes |
✓ |
| AccuEQ |
✓ |
| Advanced Music Optimizer |
✓ (Bluetooth Included) |
| Phase-Matching Bass Boost |
✓ (for Deep Bass and Clear Mid-Range) |
| 192K/24 Bit DACs |
✓ (Burr-Brown) |
| Bluetooth |
✓ (Built-in) |

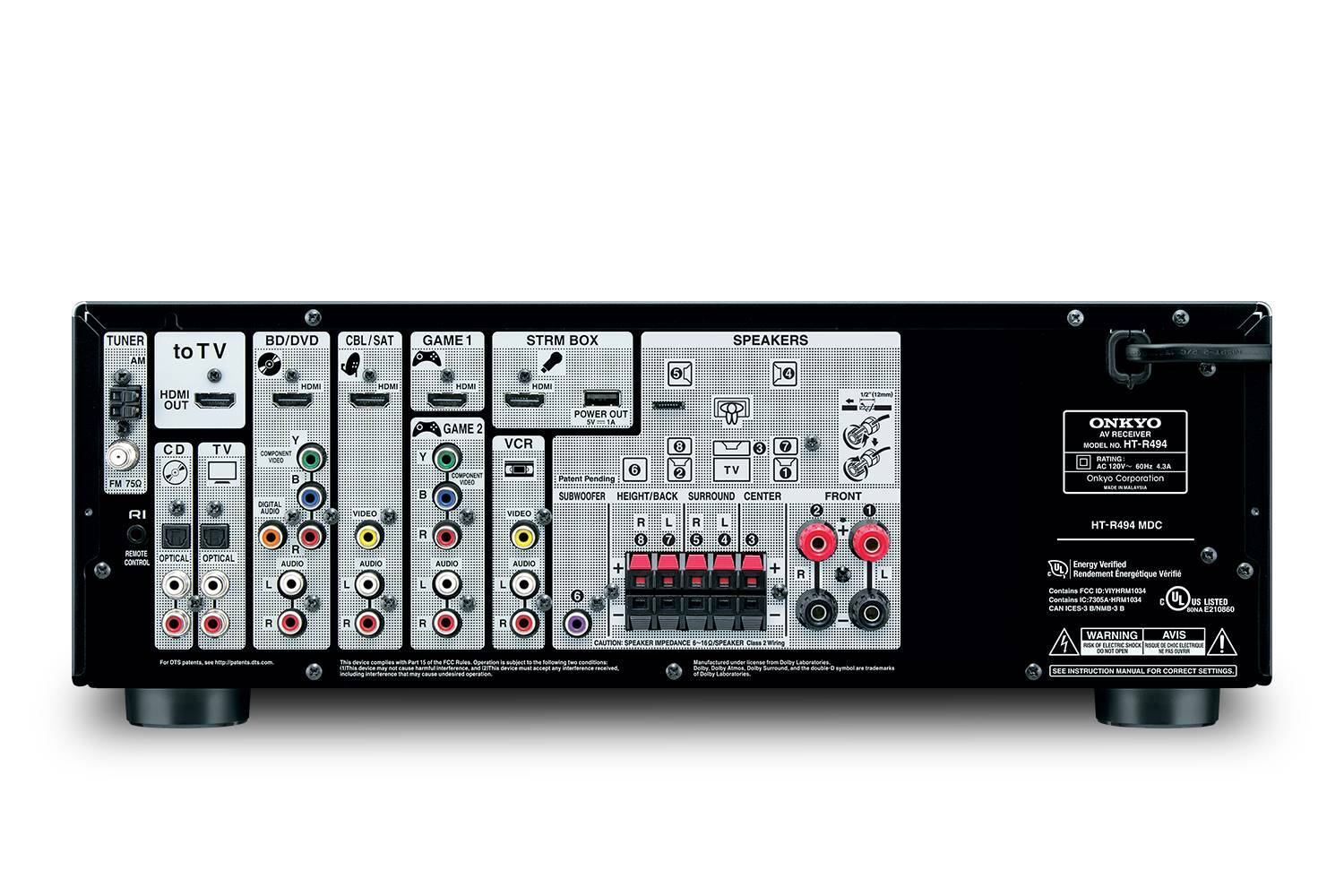

| Audio I/O |
7 / 0 |
| Digital Audio IN (OPT/COAX) |
2 / 1 |
| Composite I/O |
3 / 0 |
| USB Input |
✓ (Rear) |
| Component Video I/O |
2 / 0 |
| HDMI I/O |
4 / 1 |
| HDMI 2.0 4K/60 Hz- Capable HDMI Terminals |
✓ |
| HDCP 2.2 Copy-Protection Compatibility |
✓ |
| HDMI Support for 3D, Audio Return Channel and CEC |
✓ |
| HDMI Support for Deep Color, x.v.Color, LipSync |
✓ |
| HDMI Support for DVD-Audio, SACD, Multichannel PCM |
✓ |
| MHL for Mobile Device Connection |
- |
| Analog To HDMI UpConversion |
✓(from 480i/576i) |
| 1080p Upscaling |
- |
| 4K (up to 4096 x 2160) Upscaling |
- |
| 4K Passthrough |
✓ |
| Zone 2 |
- |
| iPod Ready |
- |
| Airplay |
- |
| Supports Onkyo Remote App |
- |
| Internet Radio Capable |
- |
| Streaming Audio From PC / Network |
- |
| Streaming Audio Formats |
- |
| Streaming Audio From USB memory |
✓ |
| Wireless Network |
- |
| Front / Height Speakers |
2-Way Bass Reflex / Dolby Atmos Enabled Full-Range, Acoustic Suspension |
| Center Speaker |
2-Way Bass Reflex |
| Surround Speaker |
Full-Range, Acoustic Suspension |
| Surround Back Speaker |
- |
| Subwoofer |
Bass Reflex, Powered |
| Cabinet Type |
Cabinet Type |
| Pre-Pro/Learning Remote |
✓ / - |
| On Screen Remote Programming |
✓ |
| Auto Speaker Calibration W/Mic. |
✓ (AccuEQ) |
| Color-Coded Speaker Terminals |
- |
| OSD Out |
✓ |
| Warranty |
2 YEARS |
Specs
| All Channels |
115 W/Channel (6 Ohms, 1 kHz, 0.9%, 1 Channel Driven, FTC) |
| Dynamic Power (front) |
160 W (3 Ohms) 125 W (4 Ohms) 85 W (8 Ohms) |
| THD+N (Total Harmonic Distortion + Noise) |
0.08% (20Hz-20kHz, half power) |
| Damping Factor |
60 (Front, 1 kHz, 8 Ohms) |
| Input Sensitivity and Impedance |
200 mV/47 k-ohms (Line) |
| Rated RCA Output Level and Impedance |
200 mV/470 Ohms (Subwoofer Pre Out) |
| Maximum RCA Output Level and Impedance |
2 V/470 Ohms (Subwoofer Pre Out) |
| Frequency Response |
10 Hz–100 kHz/ +1 dB, -3 dB (Direct mode) |
| Tone Control |
±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble) |
| Signal-to-Noise Ratio |
100 dB (Line, IHF-A) |
| Speaker Impedance |
6 Ohms–16 Ohms |
| Input Sensitivity/Output Level and Impedance |
|
| Video |
1.0 Vp-p/75 Ohms (Component Y) 0.7 Vp-p/75 Ohms (Component PB/CB, PR/CR) 1.0 Vp-p/75 Ohms (Composite) |
| Component Video Frequency Response |
5 Hz–13.5 MHz (+ 0dB / -3 dB) |
| Tuning Frequency Range |
|
| FM |
87.5 MHz–107.9 MHz |
| AM |
530 kHz–1,710 kHz |
| FM/AM Preset Memory |
40 Stations |
| Power Supply |
AC 120 V, 60 Hz |
| Power Consumption |
4.3 A |
| Dimensions (W x H x D) |
17 1/8" x 6 5/16" x 12 15/16" (435 x 160 x 328 mm) |
| Weight |
17.2 lbs. (7.8 kg) |
| Front/Center |
2-Way Bass Reflex |
| Height |
3 1/4" (8 cm) Cone |
| Surround |
80 Hz–20 kHz |
| Subwoofer |
10" (25 cm) Cone |
| Speaker - Drivers |
|
| Front |
5" (12 cm) Cone Woofer 1" (2.5 cm) Balanced-Dome Tweeter |
| Center |
3 1/4" (8 cm) Cone Woofer x2 |
| Front |
55 Hz–50 kHz |
| Height |
80 Hz–20 kHz |
| Center |
65 Hz–50 kHz |
| Subwoofer |
25 Hz–150 Hz |
