Features
System
# Channels | 5.1 |
Total System Power | 720W |
Power (6 ohms, 1kHz, 10%THD)/Ch | 120W/ch x 5ch |
Sub Power | 100W (Passive) |
THX Certified | - |
All Discrete Amplifier Circuitry | ✓ |
Speaker A/+B | - |
Processing
Dolby Atmos Ready | - |
32-Bit Digital Signal Processing Engine | - |
Dolby Decoder | TrueHD |
DTS Decoder | DTS-HD Master Audio |
ONKYO GAME Surround Modes | ✓ (Action, RPG, Rock, Sports) |
AccuEQ | - |
Advanced Music Optimizer | ✓ |
Phase-Matching Bass Boost | - |
192K/24 Bit DACs | ✓ |
Bluetooth | ✓ (Qualcomm aptX audio) |

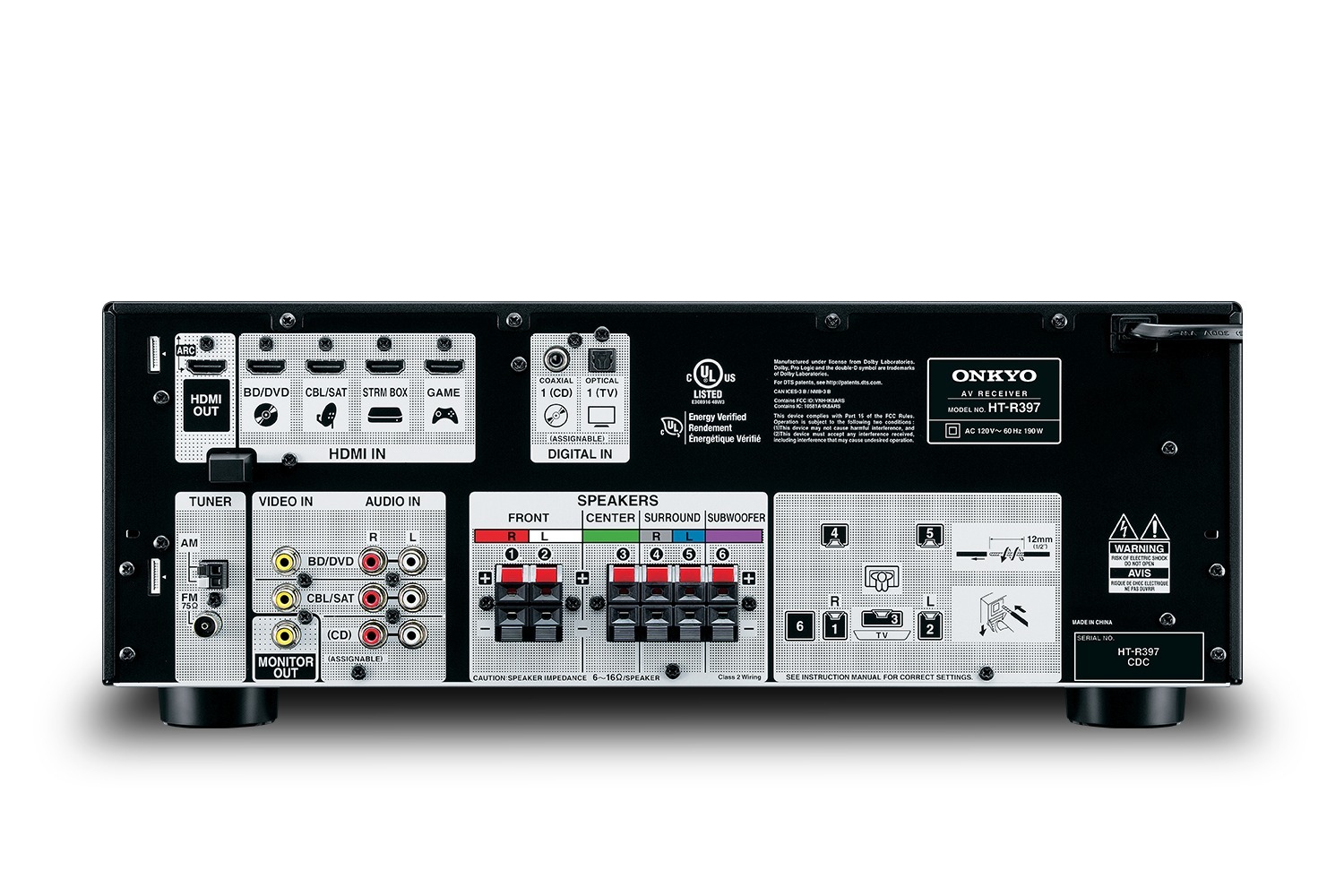

Connectivity
Analog Audio I/O | 3 / 0 |
Digital Audio IN (OPT/COAX) | 1 / 1 |
Digital Audio OUT (OPT/COAX) | - |
Composite I/O | 2 / 1 |
USB Input | Front (supports MP3, WMA, AAC) |
Component Video I/O | - |
HDMI I/O | 4 / 1 |
HDMI 2.0 4K/60 Hz- HDMI Terminals | ✓ (with HDR10, BT.2020 support) |
HDCP 2.2 Copy-Protection Compatibility | ✓ |
HDMI Support for 3D, Audio Return Channel and CEC | ✓ |
HDMI Support for Deep Color, x.v.Color, LipSync | ✓ |
HDMI Support for DVD-Audio, SACD, Multichannel PCM | ✓ |
InstaPrevue Input Source Prevue | - |
MHL for Mobile Device Connection | - |
Component Video Upconversion | - |
Analog To HDMI UpConversion | ✓ |
1080p Upscaling | - |
4K (up to 4096 x 2160) Upscaling | - |
4K Passthrough | ✓ |
Zone 2 | - |
iPod Ready | - |
Airplay Ready | - |
Supports Onkyo Remote App | - |
Internet Radio Capable | - |
Streaming Audio From PC / Network | - |
Streaming Audio Formats | - |
Streaming Audio From USB memory | ✓ |
Wireless Network | - |
Speaker
Front Speaker | Full-Range, Acoustic-Suspension |
Center Speaker | Full-Range, Acoustic-Suspension |
Surround Speaker | Full-Range, Acoustic-Suspension |
Surround Back Speaker | - |
Subwoofer | Bass Reflex |
Cabinet Type | Gloss Finished Exterior |
Miscellaneous
Pre-Pro/Learning Remote | - / - (Simple) |
On Screen Remote Programming | - |
Color-Coded Speaker Terminals | ✓ |
Auto Speaker Calibration W/Mic. | - |
OSD Out | ✓ |
Warranty | 2 YEARS |
Docs
Spec Sheet
For more technical detail, download the Spec Sheet here:
HT-S3800 Product Sheet
.
Product Manuals
Download the Product Manuals for HT-S3800 here:
HT-S3800 Owner's Manual - English
,
HT-S3800 Owner's Manual - Spanish
,
HT-S3800 Owner's Manual - French
.
